2000 pcs/roll,or can be customized for smart UHF RFID Tag
Shanghai Or Shenzhen
AD-236 Inlay EPC GEN2 UCODE® 7 UHF RFID Tag
Why Choose HUAYUAN as Your Parnter?
1. Production capacity over 40Billionsper year
2. State-of-art facility like Mühlbauer bonding, Melzer & Bielomatik converting etc.
3. Most competitive price in huge project
4. Key partner of AD over 10 years in Asia
5. Abundant experience in major projects all over the world
6. Free samples in European Zone!
UHF RFID Inlay: AD-236u7
AD-236u7 Inlay or RFID Sticker Tags
70 x 14.5mm
EPC Global Class1 Gen2 ISO 18000-63
Up to 15 m
EPC : 128 Bits , TID : 96-bit unique serialized TID Number
Dry inlay,Wet inlay,Coated paper overlay,PET overlay,PP overlay,etc
more than 5 years
more than 10000 times
Apparel and Retail Supply Chain, Inventory and Logistics

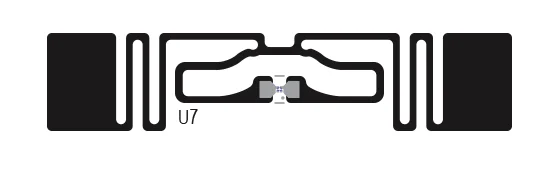

RFID Inlay Photo Show:
AD-236 delivers exceptional performance across a wide range of dielectrics:
Antenna: 100% self-resonated frequency tested with our of tolerance antenna marked “•”
Inlay: 100% on-line functional test with non-functional inlay marked “•”
Label: 100% on-line functional test with non-functional label marked “X”
Package & Shipping
All package requirement could be customize by your side, Please share us what's your request?
Or, Here is some normal package details for your reference:
1. Sealing style at end of each roll: Sticky tape (no trace) or Binding by paper tie for optional. 2. Tail: 1m leading silicon paper at the beginning and the end of roll or customize by your side. 3. Connet Joints: Normally for two joints (excluding the joints generated by blank spaces begin and end), Also you can advice your specified standard? 4. Package: ESD Package box. 5. Paper Tube: inner diameter of 3 inches
HUAYUAN sophisticate experience in RFID customized designing and manufacturing for years.
What kind of Equipment we have?
---World-class RFID Tag production line of Mühlbauer bonding, Melzer & Bielomatik converting inlaywith serious quality inspection in high-speed production.
- Muehlbauer TAL 15K
- Melzer STL - 400
You're welcome for inquiry or send us your specific project customed requirement, Our team will share our rich experience to support you.
