Long Range UHF Passive tag AD237 inlay MONZA R6 RFID Dry Inlay/Wet Inlay/Label/Sticker

FOB Reference Price:Get Latest Price
$0.035 - $0.15 / Pieces | 5000 Piece/Pieces (Min. Order)
Model Number:
AD 237 RFID label sticker
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China
Brand Name:
HUAYUAN
Item:
ISO 18000 6C UHF label
Frequency:
860-960MHz
Chips of UHF label:
MONZA R6, MONZA R6-P
Material:
PVC , Paper , Adhesive , PET
EPC Encoding:
Yes
Crafts of uhf label:
Serial number, barcode, chip ecoding, ect
Application:
Apparel, Retail, Logistic etc
Reading Range:
up to 10m
Sample:
Free Sample
Website:
www.huayuansh.com
Supply Ability
Supply Ability:
30000000 Piece/Pieces per Month ISO 18000 6C UHF label
Packaging & Delivery
Packaging Details
2000 pcs/roll,or can be customized for ISO 18000 6C UHF label
Port
Shanghai Or Shenzhen

AD237 inlay IMPINJ MONZA R6 Monza R6-P RFID label sticker



Our Advantages



Why Choose HUAYUAN as Your Parnter?



1. More than 40 Billions per year production capacity.

2. State-of-art facility like Mühlbauer bonding, Melzer & Bielomatik converting etc.

3. Most competitive price in huge project

4. Key partner of AD over 10 years in Asia

5. Rich experience in major projects all over the world

6. Free samples for testing!



Certificate:



HUAYUAN UHF Labels have passed the RFID laboratory certification of auburn university.

Product Description

ISO 18000 6C UHF label are particularly designed for item tracking and management, HUAYUAN RFID labels can be customized and programmed to match your system, available with your logo and message.





AD-237 Inlay RFID label tag Spec



Dimensions:

70 x 14.5mm

Frequency

860-960mhz (UHF)

Protocol

ISO18000-6C,EPC Class Gen 2

Life Span

500,000 rewrites, 10 years of data retention

Frequency

860-960MHZ

Chip available

IMPINJ MONZA R6, MONZA R6-P

EPC Memory:

96 bit

TID Memory:

48-bit Tag IDentifier [TID]

Printing Layer Option

Coated art paper/ PET etc.

Total thickness over chip

9-10 mils [228.6-254 microns]

Quality assurance

100% read tested with out-of-tolerance inlay marked

Crafts Option

1. serial number / UID number laser/Inkjet serial number

2. Variable QR code printed on each card

3. Epoxy on the both sides (shape can be customized)

4. Information preprogrammed



AD-237 UHF RFID Inlay Dimensions:

RFID dry Inlay Photo Show:





AD-237 delivers exceptional performance across a wide range of dielectrics:









Quality Control:

  • Antenna: 100% self-resonated frequency tested with our of tolerance antenna marked
  • Inlay: 100% on-line functional test with non-functional inlay marked “
  • Label: 100% on-line functional test with non-functional label marked “X”



RFID type tags for apparel management: RFID Paper hang tags, RFID paper labels and RFID care labels as following...

Related Products





Package & Shipping



All package could be customize. Please share us what's your request?

Here is some normal package details for your reference:



1. Sealing style at end of each roll: Sticky tape (no trace) or Binding by paper tie for optional.
2. Tail: 1m leading silicon paper at the beginning and the end of roll or customized.
3. Connet Joints: Normally for two joints (excluding the joints generated by blank spaces begin and end), Also you can advice your specified standard?
4. Package: ESD Package box.
5. Paper Tube: inner diameter of 3 inches



Company Information
HUAYUAN sophisticate experience in RFID customized designing and manufacturing for more than decades years.
What kind of Equipment we have?

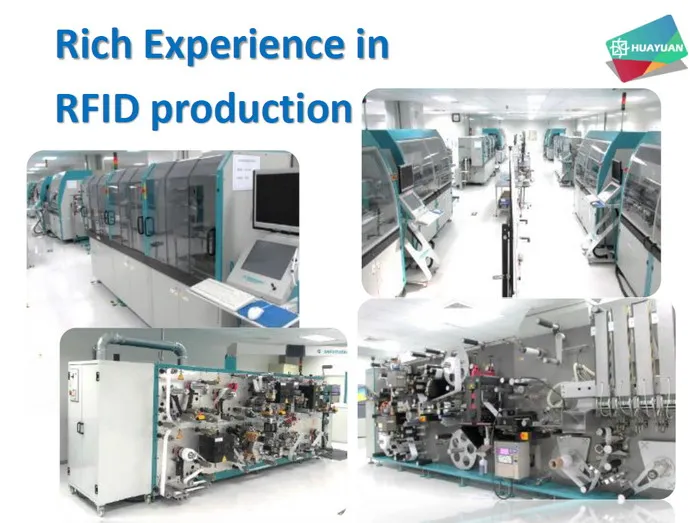

---World-class RFID Tag production line of Mühlbauer bonding, Melzer & Bielomatik converting inlay with serious quality inspection in high-speed production.
- Muehlbauer TAL 15K
- Melzer STL - 400
- Bielomatik

You're welcome for inquiry or send us your specific project requirement, Our team will share our rich experience to support you.
